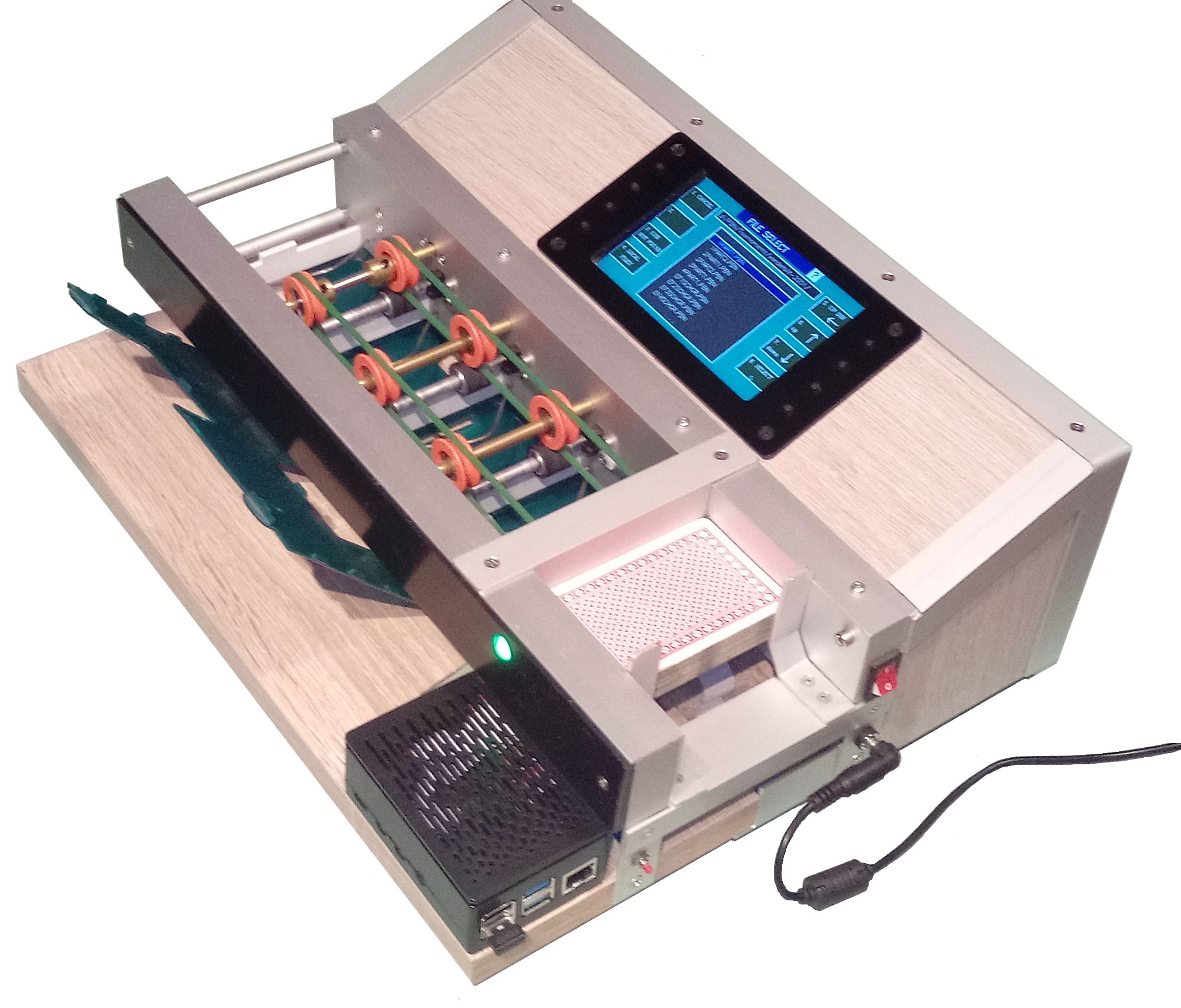

Autonomous Bridge Card Dealing machine — model 4

CARD DEALING MACHINE FOR THE BRIDGE GAME

it is also known as "DUPLICATING MACHINE"

Welcome to the ABCD4 web page

For the moment it is possible to:

• see the technical characteristics (below)
• download the manuals and the latest software version
• see a video of the machine in operation
• contact the manufacturer

Technical characteristics:

• Completely autonomous - does not need a PC (ALL functions are available directly on the machine)

• Good readability: 5 inch touch screen + 8 push-buttons
• Convenient screen angle (comfortable to use either in sitting or standing position)

• Does not need barcoded cards
• Reads standard cards (AKQJ), Dutch cards (AHVB), German (AKDB) and French (1RDV)
• Can read "Jumbo" cards up to 4XL size (used by visually impaired players)

• Dealing time (1 deck of 52 cards) 6 to 10 seconds (3 speeds available)
• Stops immediately if cards jamming occurs

• Works with PBN notation (deals cards according to PBN files)
• Uses the "Big Deal" program to generate random sets of boards (as PBN files)
• Additional functions: Read, Compare, Deal hand shuffled cards, Double Dummy Analysis

• Creates nice looking PDFs for printing

• WiFi - can be connected to a WiFi network (used mainly for exchanging files)
• 4 USB-A sockets available
• Uses Raspberry Pi 4 (with Raspberry OS)

• Comes with included power supply 110-240 V AC
• Highly portable (transporting case included, 450 x 350 x 150 mm)

Affordable price
